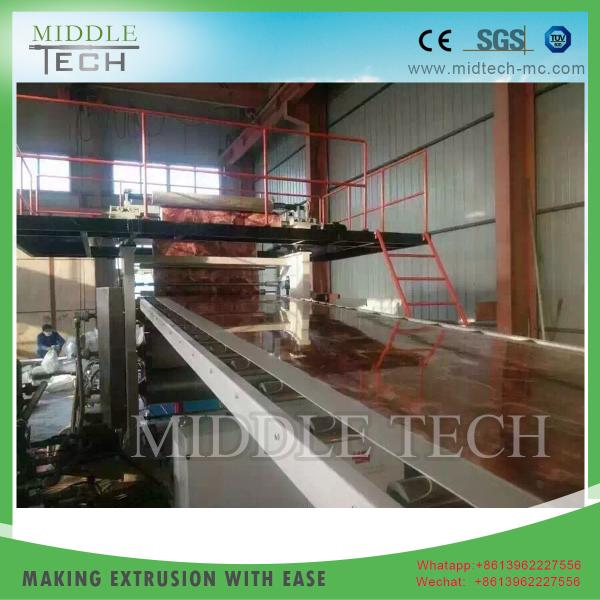

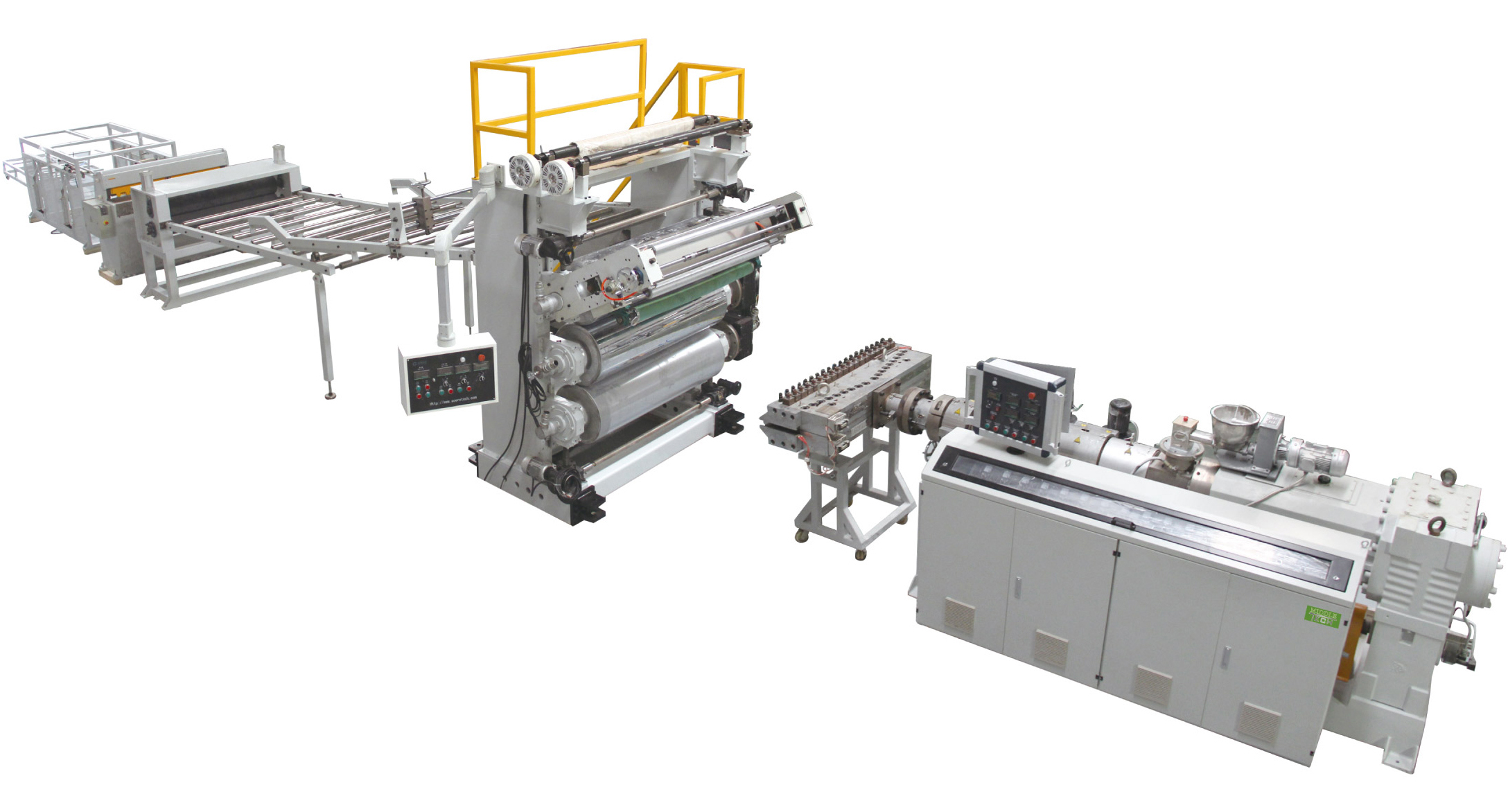

Plastic PVC stone coating paper Sheet/Board extrusion line, Model
1220
It shows superior performance, high reliability and practicality
with its compact structure, advanced configuration and outstanding
output in the production of 2-5 mm thick, high-qualified PVC
artificial marble sheet.

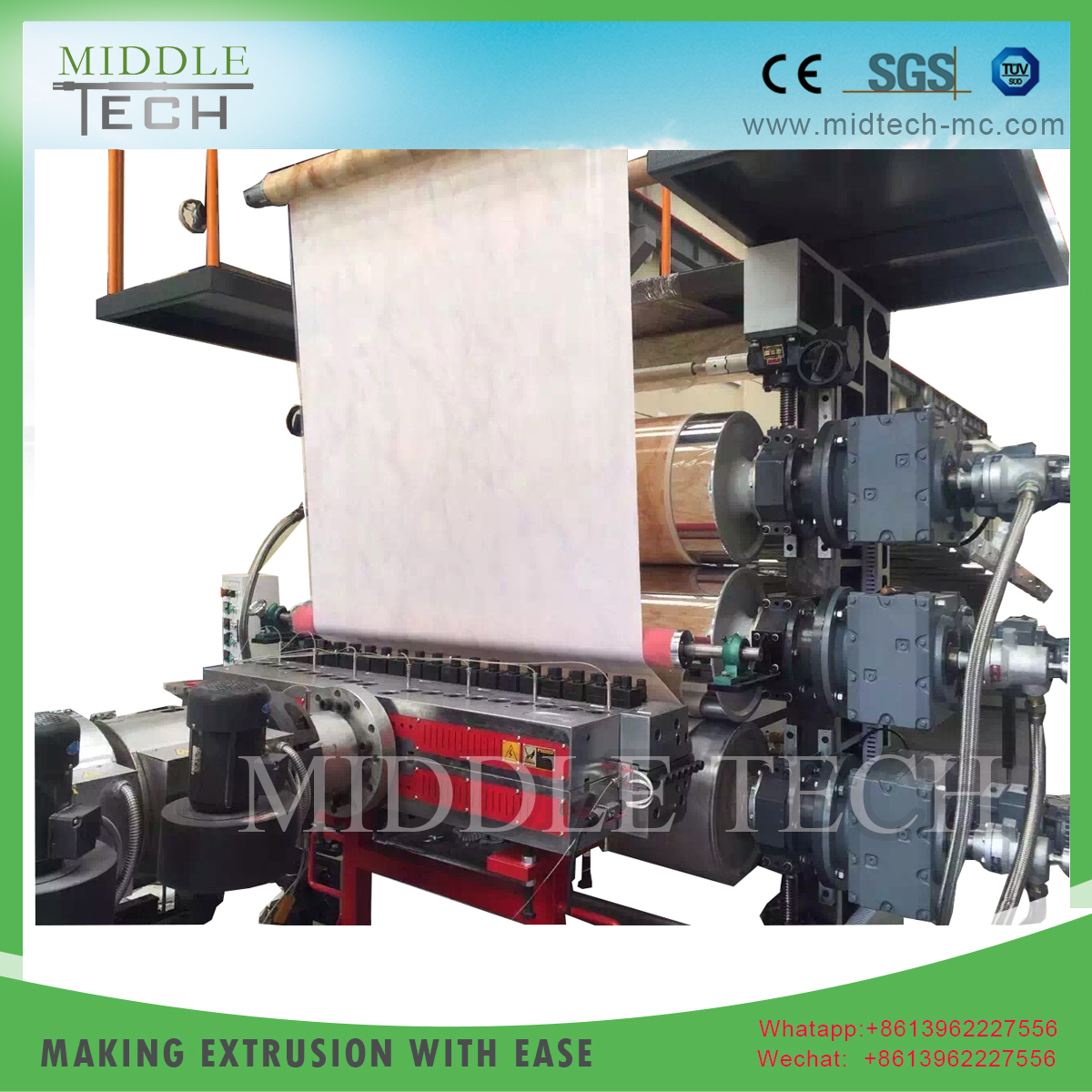

With UV painting machine, PVC sheet surface is treated with UV
directly in line,which makes a mirror-like surface with strong
feeling of smooth and shining marble.
Practical application:
ceiling,wall panel,background wall,door of
kitchen,washingroom,corridor,office
decoration,ect. special forpublic and private decoration,such as
villa,house, hotel,
shopping mall,and so on.
Processing
feed preparation→ spring feed loading→ main machine
extrusion→moulds→3-roller plating press→ hauling off→ cutting
device→ stacking device→ checking up→ packing
Technical parameters
| name | model | thickness
(mm) | power
(kw) | speed
(r/min) | output
(kg/h) | machine
size(mm) | weight
(kg) |
imitation
marble sheets | MTB-1 | 1-6 | 177.9 | 1-30 | 80-350 | 20000*2200*3200 | 5600 |
flowchart for PVC-CaCO3 decoration sheet production:
1. PVC powder and CaCO3 with additives mix together in swhl500/1000
mixing unit.
2. extrude PVC-CaCO3 sheet with conical twin-screw sheet extrusion
line swdb-1,together in the line treat with the sheet surface with
lamination film for different colors,and embossing textures with
embossing roller system
3. treat with the sheet surface with swuv1300 UV painting machine
(option for choosing)
4. crush the waste sheet corner into PCS with crusher swps400.
5. mill the waste PCS into powder with mf200-PVC milling machine
for reextrusion
6. with high wear resistance and anti-corrosion
7. through processing, it can be prolong use life for screw and
barrel
8. cold and heat spraying for hard metal process
9. high-frequency quenching technology
10. advanced nitriding technology
11. processing and manufacturing process for bimetallic
12. lowest price, high quality, delivery on time
