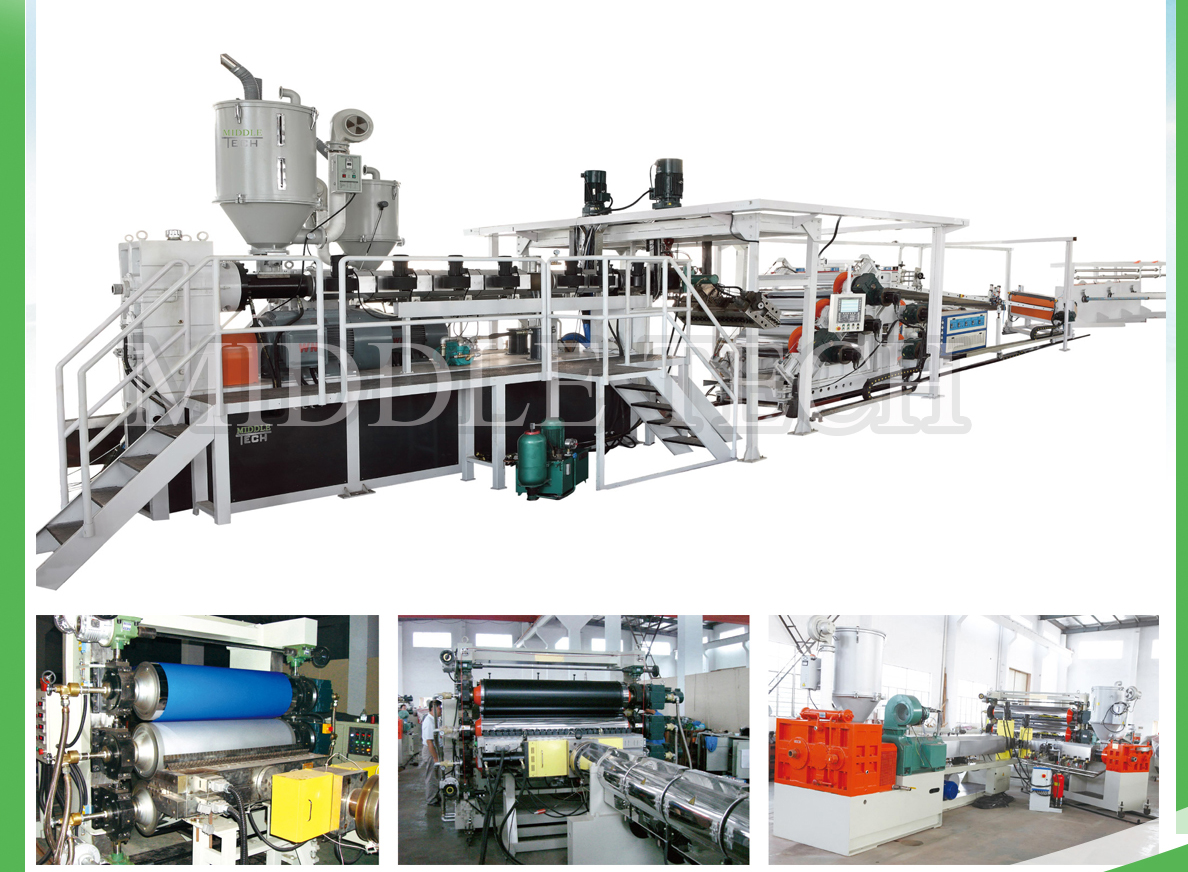

Plastic PMMA Refrigerator sheet& board extrusion production line,
thickness 0.3-20mm
Usual sheet width:
700, 900, 1020, 1200, 1300, 1400, 1500, 1700, 1800, 2100, 2200mm
Usual sheet thickness:
0.5-2mm, 1.5-10mm, 6-20mm, 3-30mm
Application of Boards:
PP Board: Widely used in chemical industry, food industry, anticorrosive,
purification industry, environmental protection equipment
manufacturing industry, etc.
PE Board: Widely used in chemical industry, electric power and other
industries. HDPE board can also be used as engineering plastics
used in machinery, chemical equipment, etc.
ABS Board: Widely used in home appliances, electronics, packaging, medical
equipment and other fields.
PS Board: Widely used in TV panel, Refrigerator panel and other high standard
field.
PVC Board: Rigid pvc board is widely used in chemical industry, petrol, decoration board.
SPVC sheet: Widely used in indoor decoration, transparent sheet.
Main configurations:
| Feeder | • To feed material into extruder; | |
| Extruder | • World famous brand electrical component such as Siemens, ABB etc;
• High torque gearbox with adopts NSK/SKF bearing;
• Siemens/WEG original motor achieved global after service;
• Bimetallic screw and barrel;
• Intelligent PLC controlling system with human-friendly interface. | |
| Flat die | • Coat hanger type
• 5CrNiMo steel material
• Apply to sheet, board | |

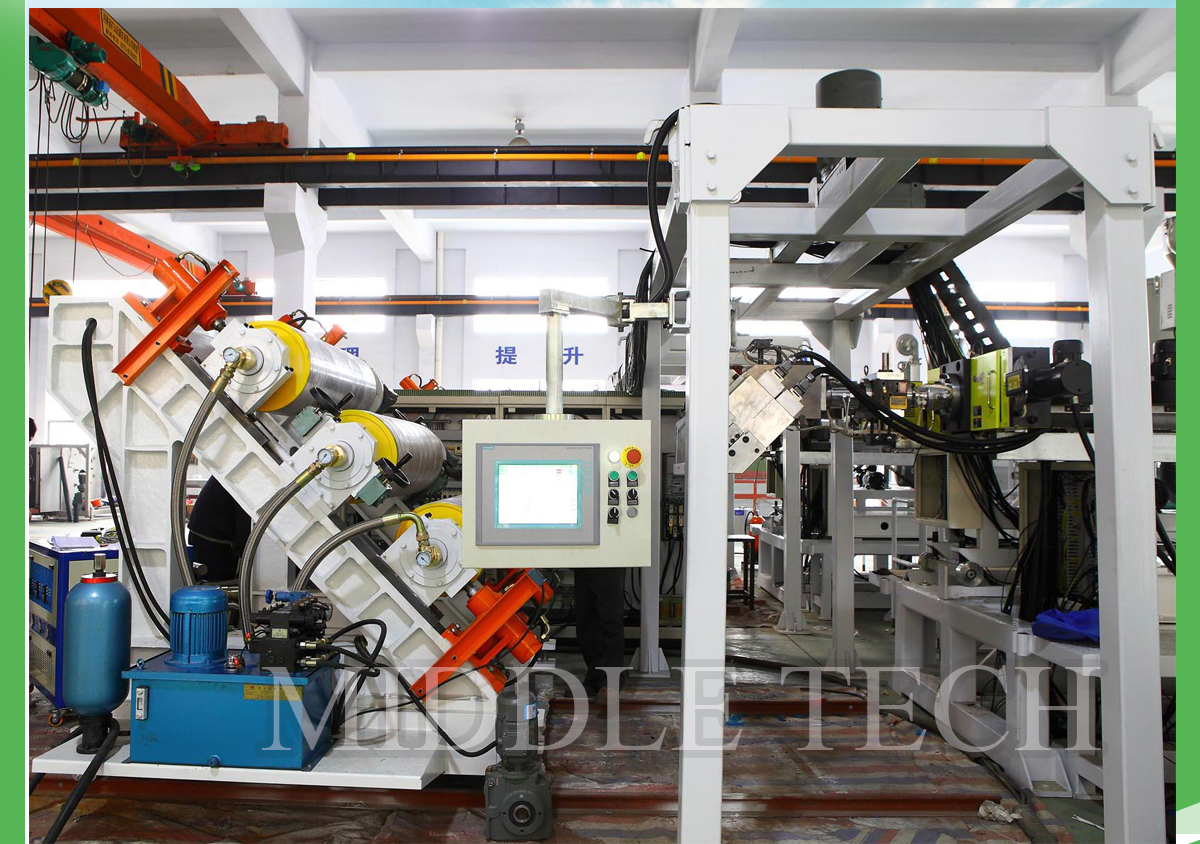

| Three roller Calender | • Compacting driving by hydraulic
• Rollers are driven separately and speed control by frequency
inverter or servo motor
• Temperature controller is include
• Independent operation panel for easy operation
• Equipped with lamination device | |
| Cooling bracket and haul off | •Multi-group cooling rollers;
•Speed control by frequency inverter
• Compacting driving by pneumatic
• With adopts wear-resisting rubber roller
| |
| | |
| Cutting system | • Plate shearer ensuing flat and chip free cutting | |
| Stacker | • Stainless steel 304 as touching material | |
Specifications:
| Type | SK-150 | SK-170 | SK-180 | SK-80 |
| Raw Material | PP,PE,ABS,PC | PP,PE,ABS,PC | PP,PE,ABS,PC | PVC |
| Width | 1220-1500mm | 1200-1500mm | 1500-2000mm | 1220mm |
| Thickness | 3-30mm | 3-30mm | 3-30mm | 3-30 |
| Extruder Type | SJ150x35 | SJ170x35 | SJ180x35 | SJSZ80x156 |
| Outout | 500kg/h | 700Kg/h | 800kg | 450kg/h |
Why choose us
♦ Specified screw design and material application for high
percentage CaCo3
♦ Speedy cooling forming die supports the production line with
faster linear speed and higher efficiency;
♦ Intelligent PLC controlling system with human-friendly interface
make the operation easily and conveniently.
♦ Ability to provide the customized plastic extrusion solutions.
♦ Turn-key solution provided include plant layout and design,
formula, production support.
♦ Super extend sales guarantee for all our machines:18 months since
the machine left supplier plant.
♦ Competitive price for all our machines to meet customer demand.
♦ World wide after services center: Hungary, Spain, Nigeria, UAE,
Brasil, Peru......
